IPDS | WAF | Rulesets | Update

WAF Global Settings

The Global Settings WAF Rule Set section allows you to configure the behavior of all rules contained in the set. You can set the name of the rule set, whether or not to check the request and response bodies, the maximum number of bytes of the request body to save, the default action to take when no resolution is specified in a rule, the default phase to execute the rule in, and the default log action.

Here is a brief description of each setting:
Name: A unique identifier for the rule. This cannot be changed after the rule is created.
Check Request Body: Determines whether the body of HTTP requests should be analyzed. If this option is disabled, the body is not examined, and the WAF does not check the request body parameters.
Request Body Limit: Specifies the maximum number of bytes of the request body that will be saved for inspection. If set to 0, the WAF saves the entire content-length value.
Check Response Body: Determines whether the body of HTTP responses should be analyzed. If this option is disabled, the body is not examined, and the WAF does not check the response body parameters. Responses larger than 524,288 bytes (512 KB) are ignored.
Default Action: These rules apply by default. Here is a summary of each action:

    • Allow: Will enable processing of the current WAF till it finishes to complete the HTTP transaction.
    • Pass: WAF will continue evaluating the next rule without cutting the HTTP transaction.
    • Deny: Finish the current HTTP transaction. Evaluation of more rules will not be allowed. If the rule matches in phase 1 or 2 (analyzing the request), the request will not be delivered to the backend. If the rule matches in phase 3 or 4 (analyzing the response), the response will not be delivered to the client.
    • Redirect: The HTTP transaction will be halted and an HTTP redirect will be sent to the client.

Redirect URL: The URL that is sent to the client when a rule matches. This URL has a predetermined redirect resolution.
Default Log: A default logging action. This value is used if no specific logging action is specified in the rule settings.
Only Logging: When this option is enabled, the resolution parameter of the rules in the set will never be executed. This mode is only available when the set is running.

Rules

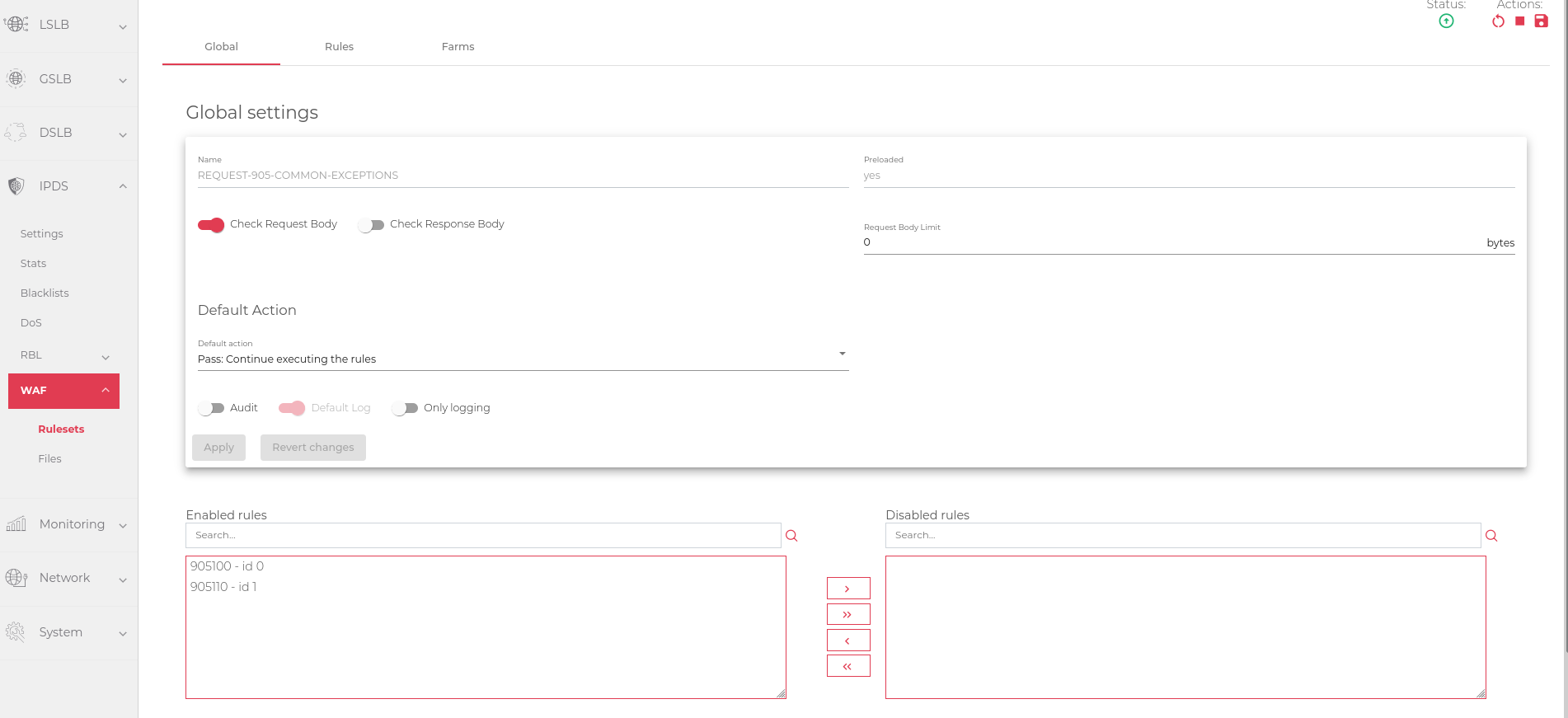

The image above shows two tables, one for Enabled rules and the other for Disabled rules.

  • Enabled Rules: This is a list of all the rules that are currently enabled in the set. Each rule is identified by its rule ID and description parameters.
  • Disabled Rules: This is a list of all the rules that are currently disabled in the set.

List of WAF Rules

The WAF Rules section allows you to create and manage WAF rules that can detect and protect against HTTP attacks.
These rules are directives that are evaluated sequentially, in the order that they are displayed on the screen.

You can Sort the rules by dragging and dropping them into the desired order.

Each rule has the following parameters:

ID: A unique identifier for the rule within the rule set.
Rule ID: A unique identifier for the rule. Two rules in the same rule set cannot have the same rule ID.
Description: A descriptive message for the rule. This message will be logged if the rule matches a request.
Phase: The step of the HTTP request where the rule will be executed. The possible phases are:

  • Request headers are received: The rule will be executed after all request headers from the client have been read by the load balancer.
  • Request body is received: The rule will be executed after the complete request body from the client has been buffered in the load balancer.
  • Response headers are received: The rule will be executed after all response headers from the server have been read by the load balancer.
  • Response body is received: The rule will be executed after the complete response body from the server has been read by the load balancer.
  • Before than logging: The rule will be executed after the WAF process has finished logging.

Resolution: The action to take if all of the match conditions are met. The possible resolutions are:

  • Allow: No more rules will be evaluated for the current HTTP transaction.
  • Pass: WAF will continue evaluating the next rule without interrupting the HTTP transaction.
  • Deny: The current HTTP transaction will be terminated. No more rules will be evaluated.
  • Redirect: The HTTP transaction will be halted and the client will be redirected to a new URL.
  • Default Action: If no resolution is specified, the default action will be used. This is usually the Allow resolution.

Advanced WAF settings


Skip: If all of the match conditions are met, the rule will skip the specified number of other rules.
Skip After: If all of the match conditions are met, the rule will jump to another position in the firewall. The rule can jump to a ‘mark’ or to another rule ID. The rule ID will be executed after the jump and will be in the same phase as the current rule.
Execute: The path to a LUA script. The script must be uploaded to the load balancer before it can be used. The script will be executed if the first match is achieved.
Log: If this parameter is enabled, the rule will be logged when the first match is achieved.

Editing a WAF in Raw Mode

If the form mode is not enough to describe a WAF rule, and the administrator is familiar with the SecLang syntax, they can create rules or a batch of rules in raw mode. This mode accepts any instructions, including instructions and parameters that are not supported by the form mode, additionally SKUDONET v10 includes a syntactic analyzer that highlight the code, this functionally help to the administrator to create own rules easily, at the moment of saving any change an additional check is done against the SKUDONET syntactic core checker, indicating if there is some error in the rule, in that case the rule will not be saved.

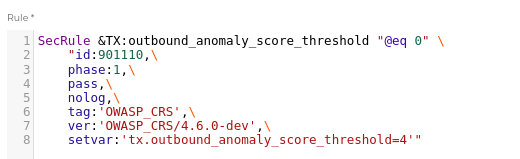

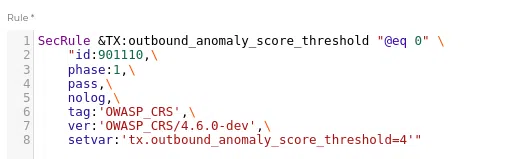

Edit in Raw mode:

Raw mode is more powerful than form mode but is also more difficult to use. It is important to understand the SecLang syntax before using raw mode to edit WAF rules.

If you want to know more about Seclang compatible with SKUDONET v10, please refer to this Seclang ModSecurity v3:



List Of Conditions

The image below shows the conditions the parsed HTTP packet must match for the rule to be applied.

All of these matches will be executed in the phase defined in the rule. The matches will be checked sequentially and the rule will be applied if all of them are successful.

To evaluate the match, the WAF will perform an operation (specified by the Operator and Operand parameters) on a list of variables. If any of the variables in the list meet the condition, then the match is considered successful.

First, the WAF decodes each header in base64 and then converts it to lowercase. Once the variables have been transformed, the WAF applies a regular expression to the list of transformed variables, looking for the string images. The multi-match option will try to match each transformation (after base64 decoding and after lowercase conversion).

Creating Conditions

To create a condition:

  1. Click the Create condition button.
  2. Select a variable of a list of them from the variables field. Optionally toggle on the Count elements of variables button if you want to track the count.
  3. From the Transformation field, select any of the available options. We’ll discuss more about transformations in the next section.
  4. Select the Operator for your rule. We’ll also discuss more about these in the next section.
  5. Enter the value to be matched in the Operating section.
  6. Click the Apply button.

The following are the configuration parameters for setting conditions:

Variable: The part of the HTTP transaction that the rule will match. Read more about Variables in the Creating Variables section below.
Transformations: A list of modifications that are applied to the variables before they are evaluated by the condition. Transformations are applied sequentially, and the multi-match option can be used to try a match for each transformation. Valid transformations include:

  • BASE64DECODE: Decodes the variable from base64.
  • TOLOWERCASE: Converts the variable to lowercase.
  • TRIM: Removes whitespace from the beginning and end of the variable.
  • URLDECODE: Decodes the variable from URL encoding.

Operator: The operation that is performed on the variables. Valid operators include:

  • CONTAINS: Checks if the variable contains the operand.
  • EQUALS: Checks if the variable is equal to the operand.
  • GREATER_THAN: Checks if the variable is greater than the operand.
  • GREATER_THAN_OR_EQUAL: Checks if the variable is greater than or equal to the operand.
  • LESS_THAN: Checks if the variable is less than the operand.
  • LESS_THAN_OR_EQUAL: Checks if the variable is less than or equal to the operand.
  • MATCHES: Checks if the variable matches the regular expression specified in the operand.

Operand: The value that is compared to the variables. The type of the operand must match the type of the variables.
Multi-Match: If this parameter is enabled, the WAF will try a match for each transformation that is applied to the variables.
Not Match: If this check-box is enabled, the result of the match will be negated.

Creating Variables

Variables are required parameters for match conditions. They specify the part of the HTTP request or response that will be searched for the information.

  • Variable: This parameter specifies the field of the HTTP request or response to search for the information (e.g., time, server).
  • Variable’s argument: When a variable is selected, it may be necessary to specify an element from it. For example, in the image below, the request header host is selected.
  • Count elements of variables: This checkbox counts the number of elements in the variable. This feature is useful when the variable is a list.

Table of Variables.

Variable Description
ARGS A collection of the values of arguments in a request.
ARGS_JSON A collection of the values of arguments in a JSON request. This variable is only available if the WAF is configured to parse JSON arguments. The rule set REQUEST-901-INITIALIZATION must be enabled to use this variable.
ARGS_COMBINED_SIZE The total size of the request parameters, excluding files.
ARGS_NAMES A collection of the names of the arguments in a request.
FILES The file names in the user file system. This variable is only available if the request data is multipart/form-data.
FILES_COMBINED_SIZE The total size of the files in a request. This variable is only available if the request data is multipart/form-data.
FILES_NAMES A list of file names used to upload the files. This variable is only available if the request data is multipart/form-data.
FILES_SIZES A list of individual file sizes. This variable is only available if the request data is multipart/form-data.
REQBODY_ERROR A variable that is set to 1 if the request body format is not correct for JSON or XML, and 0 otherwise.
REQUEST_BODY The raw body of the request. If the request does not have the “application/x-www-form-urlencoded” header, you must use “ctl:forceRequestBodyVariable” in the REQUEST_HEADER phase.
REQUEST_BODY_LENGTH The number of bytes in the request body.
REQUEST_COOKIES A list of all request cookie values.
REQUEST_COOKIES_NAMES A list of all request cookie names.
REQUEST_HEADERS All request headers.
REQUEST_HEADERS_NAMES A list of all request header names.
REQUEST_METHOD The request method (e.g., GET, POST, PUT, DELETE).
REQUEST_PROTOCOL The request HTTP version protocol (e.g., HTTP/1.1, HTTP/2).
REQUEST_URI The URI request path, excluding the virtual host.
PATH_INFO The information before the URI path.
FULL_REQUEST The full request.
FULL_REQUEST_LENGTH The number of bytes in the full request.
RESPONSE_BODY The raw body of the response.
RESPONSE_CONTENT_LENGTH The number of bytes in the response body.
RESPONSE_HEADERS All response headers.
RESPONSE_HEADERS_NAMES A list of all response header names.
RESPONSE_PROTOCOL The response HTTP version protocol (e.g., HTTP/1.1, HTTP/2).
RESPONSE_STATUS The response HTTP code (e.g., 200, 404, 500).
REMOTE_ADDR The IP address of the client.
REMOTE_PORT The port where the client initiated the connection.
REMOTE_USER The name of the authenticated user.
TIME The server time in the format hours:minutes:seconds.
DURATION The number of milliseconds since the start of the current transaction.
MULTIPART_FILENAME The filename field in a multipart request.
MULTIPART_NAME The name field in a multipart request.
MATCHED_VAR The matched value in the last match operation. This value does not need the capture option but it is replaced in each match operation.
MATCHED_VARS A list of all matched values.
SERVER_ADDR The IP address of the server.
SERVER_NAME The virtual host that was obtained from the request URI.
ENV The environment variables of the WAF.
TX A collection of variables for the current transaction. These variables are removed when the transaction ends. The variables TX:0-TX:9 store the values captured with the strRegex or phrases operators.

Table of Operators

WAF operators can have different contexts, which are indicated by prefixes such as int for integer operations, IP for IP operations, str for string operations, and validate for data validation.

Validates variables that are UTF-8. This operator does not expect any operating.

Operator Description
strBegins Matches if any of the variables begin with the value of operating.
strContains Matches if any of the variables contain the value of operating.
strContainsWord Matches if any of the variables contain the word or the value of the operating.
strEnd Matches if any of the variables end with the value of operating.
strWithin Matches if any of the variables start with the value of operating.
strMatch Matches if any of the variables match the value of operating. This operating can be a list of strings split by the character
strEq Matches if any of the variables is identical to the value of the operating.
strRegex Matches if any of the variables match the regular expression used in operating.
strPhrases Matches if any of the variables match any of the values of the list operating.
strPhrasesFromFile Matches if any of the variables match any of the values of the list in the file specified by operating.
intEQ Matches if any of the variables is equal to the number used in operating.
intGE Matches if any of the variables is greater or equal to the number used in operating.
intGT Matches if any of the variables is greater than the number used in operating.
intLE Matches if any of the variables is lower or equal to the number used in operating.
intLT Matches if any of the variables is lower than the number used in operating.
detectSQLi Detects an SQL injection on the list of variables. This operator does not expect any operating.
detectXSS Applies the detection of XSS injection to the list of variables. This operator does not expect any operating.
ipMatch Attempts matching the IP or network segments of operating with the list of variables.
ipMatchFromFile Matches the IP or network segments of operating with the list of IPs and network segments in the file specified by operating.
validateByteRange Ensures that the number of bytes of the variables is in one of the operating values. An example of operating is “10, 13, 32-126”.
validateUrlEncoding Validates encoded data. This operator must be used only for data that does not encode data commonly or for data that are encoded several times.
validateUtf8Encoding
verifyCreditCard Verifies if variables are credit card numbers. This parameter accepts a regular expression as operating. If it matches, then it will successfully verify the card.
verifySSN Verifies if variables are a US Social Security Number. This parameter accepts a regular expression as operating, if it matches then it applies the SSN verify.
matchAllways Always returns true, forcing a match.
matchNever Always returns false, forcing a non-match.

Table of Transformation

Transformation Description
base64Decode Convert Base64-encoded string to original form.
base64DecodeExt Convert Base64-encoded string to original form, ignoring invalid characters.
sqlHexDecode Convert SQL hex data to original form.
base64Encode Convert string to Base64-encoded form.
cmdLine Avoid problems with escaped command line.
compressWhitespace Convert whitespace characters to spaces, merging multiple consecutive spaces into one.
cssDecode Decode characters encoded using CSS 2.x escape rules.
escapeSeqDecode Decode ANSI C escape sequences, leaving invalid encodings unchanged.
hexDecode Decode string encoded using the same algorithm as hexEncode.
hexEncode Convert string to hexadecimal-encoded form.
htmlEntityDecode Decode HTML entities.
jsDecode Decode JavaScript escape sequences.
length Return length of input string in bytes, as a string.
lowercase Convert all characters to lowercase using the current C locale.
md5 Calculate MD5 hash of input string.
none Remove previous transformation functions associated with the current rule.
normalizePath Remove multiple slashes, directory self-references, and directory back-references from the input string, except when at the beginning of the input.
normalizePathWin Same as normalizePath, but first convert backslash characters to forward slashes.
parityEven7bit Calculate even parity of 7-bit data.
parityOdd7bit Calculate odd parity of 7-bit data.
parityZero7bit Calculate zero parity of 7-bit data.
removeNulls Remove all NUL bytes from input.
removeWhitespace Remove all whitespace characters from input.
replaceComments Replace C-style comments with a single space, merging multiple consecutive occurrences of space.
removeCommentsChar Remove common comments chars.
replaceNulls Replace NUL bytes in input with space characters.
urlDecode Decode URL-encoded input string, ignoring invalid encodings.
uppercase Convert all characters to uppercase using the current C locale.
urlDecodeUni Decode URL-encoded input string with support for Microsoft-specific %, u encoding.
urlEncode Encode input string using URL encoding.
utf8toUnicode Convert all UTF-8 characters sequences to Unicode.
sha1 Calculate SHA1 hash of input string.
trimLeft Remove whitespace from the left side of the input string.
trimRight Remove whitespace from the right side of the input string.
trim Remove whitespace from both the left and right sides of the input string.

Farms

The Farms WAF Settings section allows you to assign the current WAF rule set to one or more HTTP(s) farms.

To enable or disable WAF rules on a Farm, Drag and Drop them from the Available farms to the Enabled farm box or vice-versa.

Seclang and SKUDONET WAF can be used to extend functionalities in the proxy, like Auditing traffic, please refer to this article if you want to know more about how to use SKUDONET WAF.

Next Article: IPDS | WAF | Files

Was this article helpful?

Related Articles

Download Skudonet ADC Load Balancer
Community Edition

Source Code

A versatile and installable ADC system designed for diverse vendor hardware.

DOWNLOAD SOURCE

Installable ISO

Load Balancing as a Service alongside an ADC orchestration toolkit.

DOWNLOAD ISO
Download Community Edition

Download Community Edition

“We manage the information you provide with the sole aim of assisting with your requests or queries in regards to our products or services; applying the computer and security procedures to ensure its protection. Your data can be rectified or removed upon request but won’t be offered to any third parties, unless we are legally required to do so.” Responsible: SKUDONET SL - info@skudonet.com
