Routing Tables List

Once the packet reaches the rule table, a decision is made and this part of the system finally forwards the packet to a given table. This is the section where the routes of the tables can be modified.

By default, any ZEVENET Load Balancer includes at least two tables. The table main and table_eth0. The table main is used by the load balancer for reaching external services like DNS resolution, NTP requests, proxy connection, APT updates, etc, and the table table_eth0 and the others are used for load balancing purposes where the VIPs are linked and their traffic is managed.

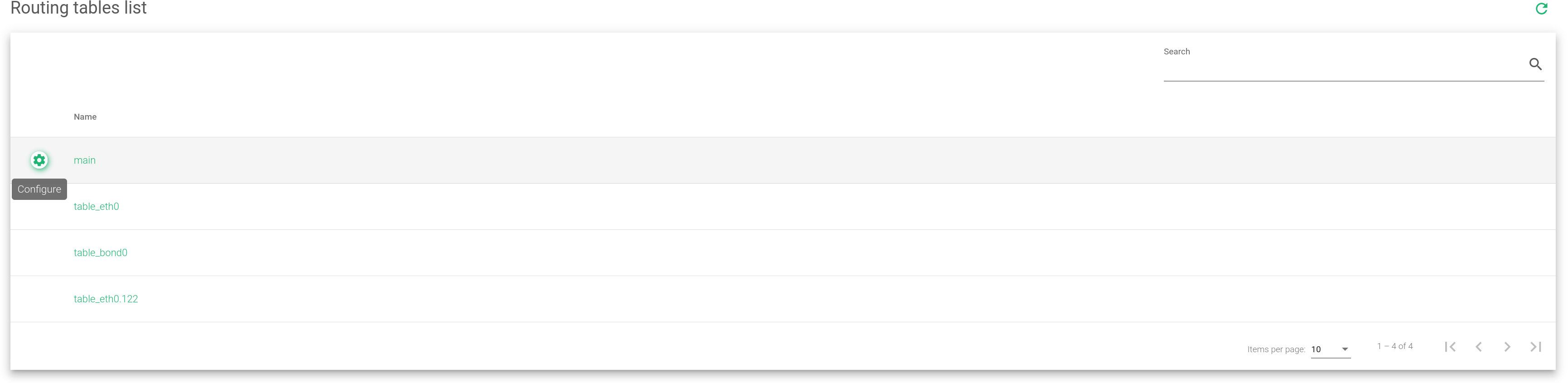

This view shows the available routing tables in the system. The field properties are described below:
Name: A name that easily identifies a table.
Action: The access to the configuration view for the selected table.
