To Create a Remote Server VPN:
1. Go to the Network > VPN Section.

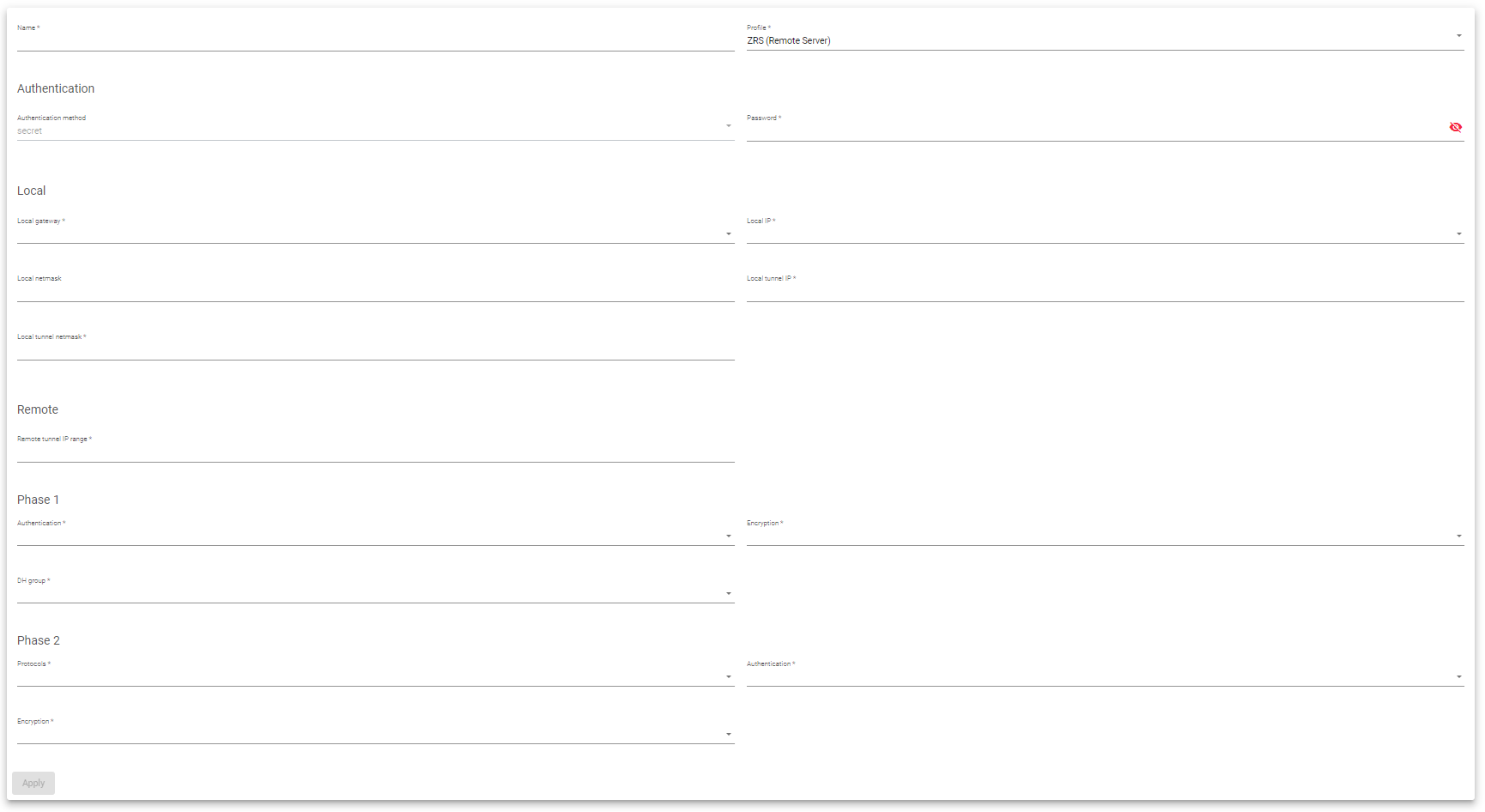

2. Click the Create VPN button. A form will be presented with the following fields.
Name: Choose a descriptive name for your VPN connection, such as ZRServer.
Profile: Select Remote Server as the profile type.
Authentication:
- Authentication method: The authentication method is a secret. You can not choose it.
- Password: Enter the password for the VPN.
Local:
- Local gateway: Enter the local gateway’s IP address.
- Local IP: Specify the local IP address of the VPN endpoint.
- Local netmask: Enter the netmask for the local network.
- Local tunnel IP: Specify the IP address for the local tunnel interface.
- Local tunnel netmask: Enter the netmask for the local tunnel interface.
Remote:
- Remote tunnel IP range: Define the range of IP addresses that will be assigned to the remote end of the VPN tunnel.
Phase 1 (IKE Phase 1):
- Authentication: Choose the authentication method for IKE Phase 1 negotiations.
- Encryption: Select the encryption algorithm for securing Phase 1 negotiations.
- DH group: Choose the Diffie-Hellman group for key exchange during Phase 1 negotiations.
Phase 2 (IKE Phase 2):
- Protocols: Select the protocols to be used for data transmission.
- Authentication: Choose the authentication algorithm for securing Phase 2 negotiations.
- Encryption: Select the encryption algorithm for securing data transmission during Phase 2.
3. Click the Apply button to create the L2TP VPN.
